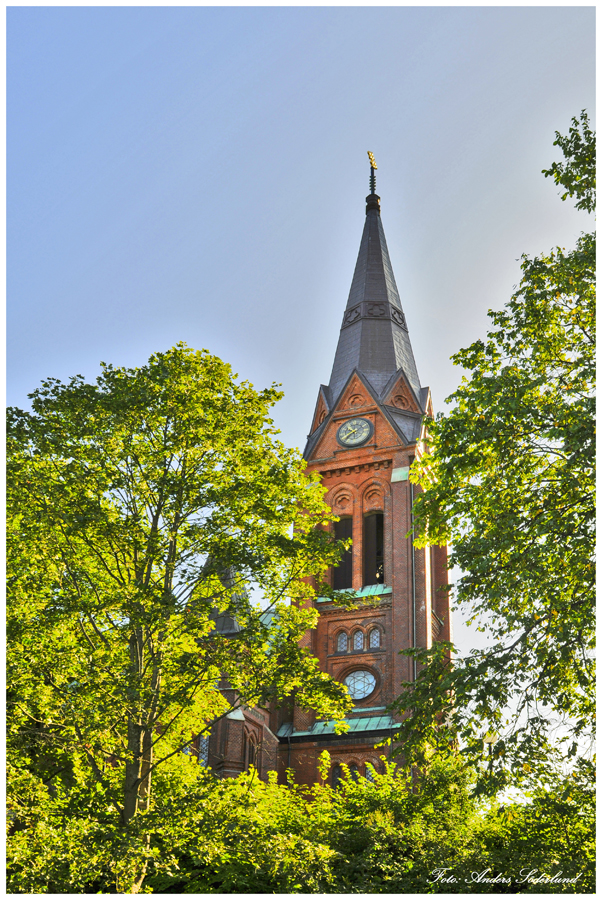

Örgryte nya kyrka
Klicka i bilderna för högre upplösning
ORGLARNA

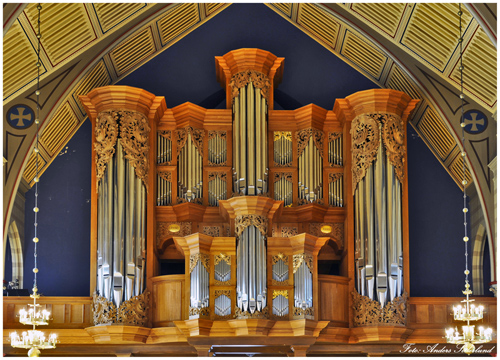

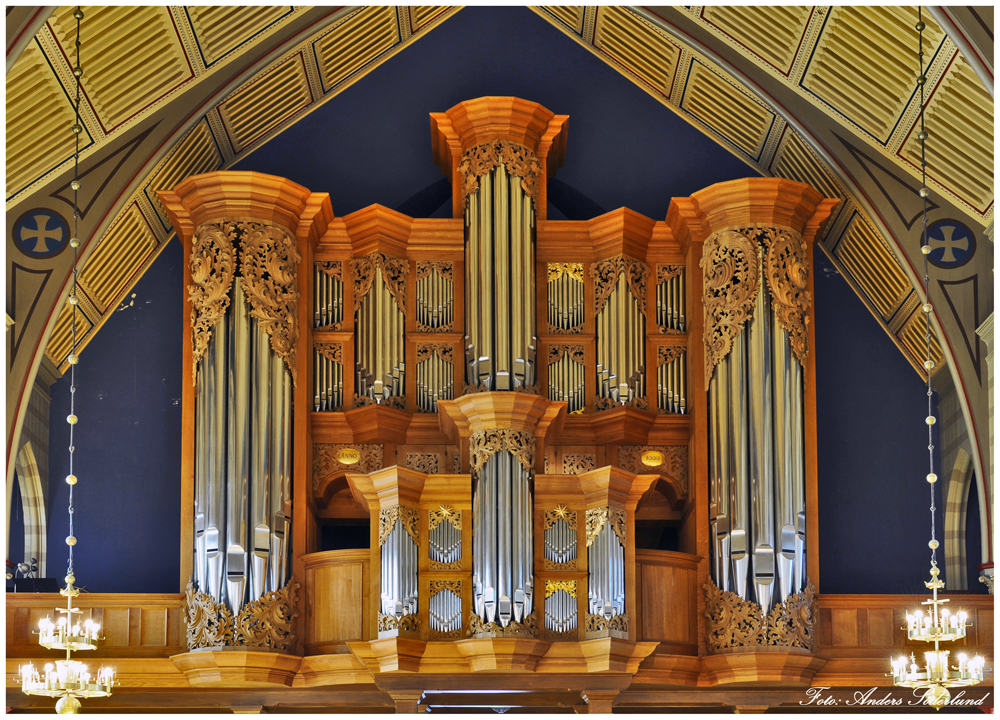

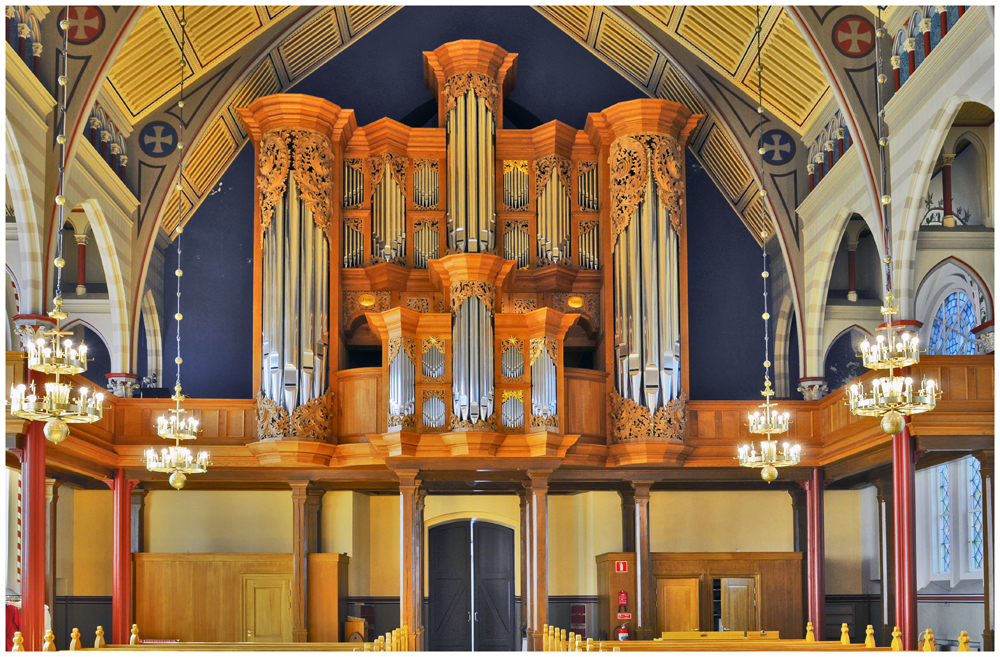

BAROCKORGELN
DISPOSITION
|
Werck (CDEFGA-c3) |
Ober Positiv (CDEFGA-c3) |
Rück Positiv (CDE-c3) |
Brust Positiv (CDEFGA-c3) |
Pedal (CD-d1) |
|
Principal 16' |
Principal 8' |
Principal 8' |
Principal 8' |
Principal 16' |
|
Quintaden 16' |
Hollfloit 8' |
Quintadena 8' |
Octav 4' |
SubBass 16' |
|
Octav 8' |
Rohrfloit 8' |
Gedact 8' |
Hollfloit 4' |
Octav 8' |
|
Spitzfloit 8' |
Octav 4' |
Octav 4' |
Waltfloit 2' |
Octav 4' |
|
Octav 4' |
Spitzfloit 4' |
Blockfloit 4' |
Sexquialter 2 fach |
Rauschpfeiffe 3 fach |
|
Super Octav 2' |
Nassat 3' |
Octav 2' |
Scharff 4.5.6 fach |
Mixtur 6.7.8 fach |
|
Rauschpfeiff 2 fach |
Octav 2' |
Quer Floit 2' |
Dulcian 8' |
Posaunen (from F) 32' |
|
Mixtur 6.7.8 fach |
Gemshorn 2' |
Sieffloit 1 1/2' |
Trechter Regal 8' |
Posaunen 16' |
|
Trommet 16' |
Scharff 6 fach |
Sexquialt 2 fach |
Dulcian 16' |
|
|
Cimbel 3 fach |
Scharff 6.7.8 fach |
Trommet 8' |
||
|
Trommet 8' |
Dulcian 16' |
Trommet 4' |
||
|
Vox Humana 8' |
Bahrpfeiff 8' |
Cornet 2' |
||
|
Zincke (from f) 8' |
Couplers: OP/W, BP/W - Cimbelstern - Vogelgesang - Trommel - Sperrventiele: W, RP, OP,BP, Ped.
Hauptsperrventiel - Tremulant - Tremulant RP - Tremulant Pedal - 12 bellows of 4' x 8' - 1/4 syntonic comma meantone
Subsemitones in all manuals: eb/d#, g#/ab, eb1/d#1, g#1/ab1, eb2/d#2 In RP, add: bb/a#, bb1/a#1, g#2/ab2 Pedal: eb/d#, g#/ab
Interchangeable wind systems

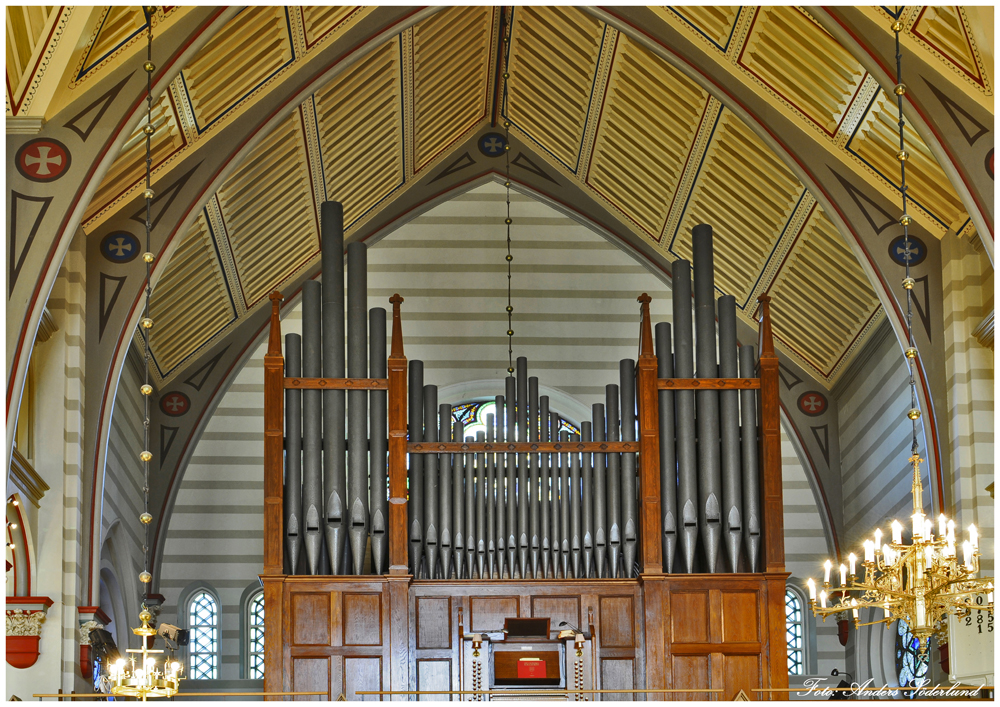

WILLIS-ORGELN
DISPOSITION
| Choir I (C-g3) | Great II (C-g3) |
|
Pedal (C-f1) | |
| Lieblich Gedact 8' | Double Diapason 16' | Contra Gamba 16' | Grand Open Diapason 16' | |
| Dulciana 8' | Open Diapason 8' | Open Diapason 8' | Violone Metal 16' | |
| Gemshorn 4' | Viola 8' | Lieblich Gedact 8' | Bourdon 16' | |
| Flute Harmonique 4' | Claribel Flute 8' |
|
Violoncello 8' | |
| Piccolo 2' | Octave 4' |
|
Ophicleide 16' | |
| Corno di Bassetto 8' | Quinte 2 2/3' | Octave 4' | ||
| Super Octave 2' |
|
|||
| Mixture III | Cornopean 8' | |||
| Bombarde 8' | Hautboy 8' | |||
| Vox Humana 8' | ||||
| Clarion 4' | ||||
| Tremulant |
Koppel: Gr/P, Ch/P, Sw/P, Sw/Gr, Ch/Gr, Sw/Ch (1902?), Sw/Gr 4', Sw/Gr 16'
Sju fasta kombinationer (regleras med trampor)
Mekanisk traktur och registratur; Barkermaskin för Great; rörpneumatik i Pedal
Lufttryck: 76 mm (Bombarde 8', Violoncello 8' och Ophicleide 16': 135 mm)
Temperering: liksvävig
